$10,749.00

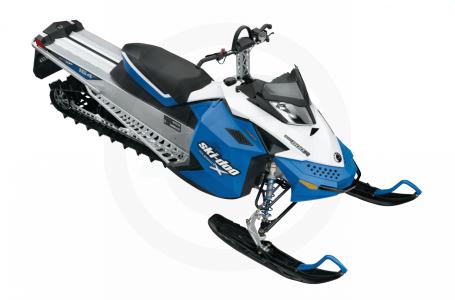

2009 Ski-Doo Summit X 154 Rotax® 800R Power T.E.K.
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The ultimate mountain machine with race-bred lightweight and high performance features.

  • 151 hp 800R Power T.E.K. engine choice
  • REV-XP platform
  • Brembo racing brake, braided line
  • Lightweight front suspension components
  • SC™-5M rear suspension
  • KAYABA‡ HPG™ T-A alu. shocks
  • Track length:154-inch
  • REV-XP racing seat
  • Pilot™ 6.9 skis
  • Multi-function digital gauge w/ display
  • Riser block / Low windshield
  • RER™ electronic reverse
COLOR
  • Bright White/True Blue
  • Deep Black
ENGINE
  • Engine: Rotax 800R Power T.E.K.
  • Engine details: Liquid-cooled, 3-D R.A.V.E.™
  • Cylinders: 2
  • Displacement: 799.5 cc / 48.8 in3
  • Bore: 82 mm / 3.2 in
  • Stroke: 75.7 mm / 3 in
  • Maximum engine speed: 8150 RPM
  • Carburetion: 2X TM-40
  • Recommended fuel type: Premium unleaded
  • Minimum octane: 91
  • Fuel tank: 40 liters / 10.6 gallons
  • Oil tank: 3.7 liters / 3.9 quarts
  • Exhaust system: Single tuned-pipe, baffle muffler
POWERTRAIN
  • Drive clutch type: TRA VII
  • Driven clutch type: QRS
  • Engagement: 3800 RPM
  • Clutches center distance: 258.7 mm / 10.18 in
  • Small sprocket number of teeth: 19
  • Large sprocket number of teeth: 45
  • Drive sprocket number of teeth: 8
  • Drive sprocket diameter: 183 mm / 7.2 in
  • Brake system: Brembo hydraulic brake & racing braided line
SUSPENSION
  • Front suspension: Dual A-arm front suspension
  • Front shock: KAYABA HPG T-A alu.
  • Front suspension max. travel: 229 mm / 9 in
  • Rear suspension: SC-5M
  • Front arm shock: KAYABA HPG T-A alu.
  • Rear arm shock: KAYABA HPG T-A alu.
  • Rear suspension max. travel: 381 mm / 15 in
DIMENSIONS
  • Vehicle overall length: 3310 mm / 130.3 in
  • Vehicle overall width: 1204 mm / 47.4 in
  • Vehicle overall height: 1000 mm / 39.4 in
  • Official dry weight: 195 kg / 429 lb
  • Ski stance: 1025 mm to 1080 mm / 40 to 42.5 in
  • Ski overall length: 1066 mm / 42 in
  • Ski width: 175 mm / 6.9 in
  • Track nominal width: 406 mm / 16 in
  • Track nominal length: 3923 mm / 154 in
  • Track profile height: 57.2 mm / 2.25 in
ADDITIONAL FEATURES
  • Skis: Pilot 6.9
  • Seating: REV-XP racing
  • Electric start: Optional
  • Reverse: RER
  • Speedometer: Standard
  • Electric fuel gauge: Standard
  • Mirrors: Optional
  • Windshield: Low
  • Handlebar: Riser block (205 mm / 8 in ) / Strap
  • Anti-slip running boards: Standard
NOTES:

BRP reserves the right at anytime to discontinue or change specifications, price, design, features, models or equipment without incurring any obligation.


Specifications

Engine
Engine Type Rotax 800R Power T.E.K., 3-D R.A.V.E.™
Displacement 48.8 cu. in. (799.5 cc)
Bore x Stroke 3.2" x 3" (82 x 75.7 mm)
Cylinders 2
Engine Cooling Liquid-cooled
Carburetion 2X TM-40
Exhaust Single tuned-pipe, baffle muffler
Drivetrain
Brake Type Brembo hydraulic brake & racing braided line
Drive Clutch TRA VII
Driven Clutch QRS
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC-5M
Rear Travel 15 in. (381 mm)
Ski Type Pilot 6.9
Ski Stance 40 in. to 42.5 in. (1025 mm to 1080 mm)
Track Dimensions 154" x 16" x 2.25" (3923 x 406 x 57.2 mm)
General
Speedometer Standard
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 429 lbs. (195 kg)
Windshield Low
Color Bright White/True Blue or Deep Black
Options
Electric Start Optional
Reverse RER
Mirrors Optional

Compare Models

 Print








Year 2009
Manufacturer Ski-Doo
Model Summit X 154 Rotax® 800R Power T.E.K.
Style Performance
MSRP* $10,749.00
Drivetrain
Brake Type Brembo hydraulic brake & racing braided line
Drive Clutch TRA VII
Driven Clutch QRS
Engine
Engine Type Rotax 800R Power T.E.K., 3-D R.A.V.E.™
Displacement 48.8 cu. in. (799.5 cc)
Bore x Stroke 3.2" x 3" (82 x 75.7 mm)
Cylinders 2
Engine Cooling Liquid-cooled
Carburetion 2X TM-40
Ignition
Exhaust Single tuned-pipe, baffle muffler
Alternator
General
Speedometer Standard
Tachometer
Odometer
Headlight
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 429 lbs. (195 kg)
Windshield Low
Color Bright White/True Blue or Deep Black
Warranty
Options
Electric Start Optional
Hand & Thumb Warmers
Reverse RER
Mirrors Optional
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC-5M
Rear Travel 15 in. (381 mm)
Ski Type Pilot 6.9
Ski Stance 40 in. to 42.5 in. (1025 mm to 1080 mm)
Track Type
Track Dimensions 154" x 16" x 2.25" (3923 x 406 x 57.2 mm)
