$2,499.00

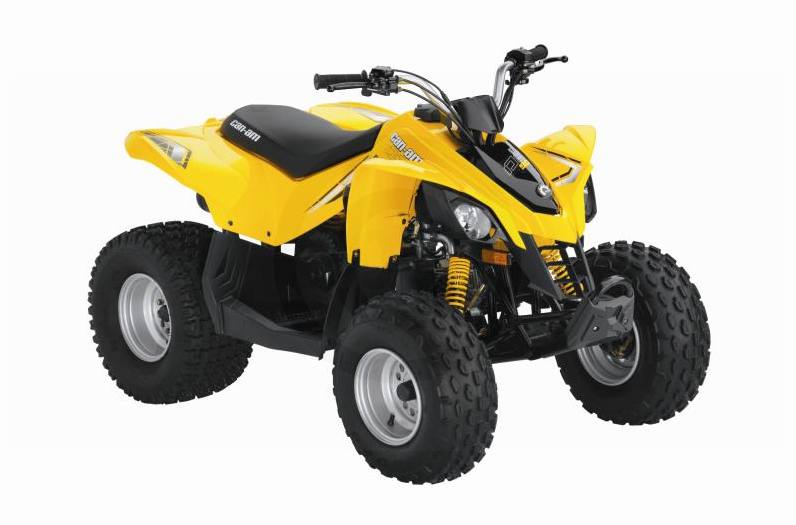

2009 Can-Am Youth DS 90
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 89.5cc 4-stroke engine
  • CVT Transmission
  • Long travel suspension
  • Built-in throttle limiter
  • Key-operated ignition switch
  • Electric start with a backup kick-start
  • Full floorboards
  • Day lights
  • 0.7 US gal. (2.7 L) storage compartment
Standard package key features
  • 89.5cc 4-stroke engine (CARB “Green Label” certified)
  • Fully automatic Continuously Variable
  • Transmission (CVT) with F/N/R
  • Long travel suspension
  • Built-in throttle limiter
  • Key-operated ignition switch
  • Electric start with a backup kick-start
  • Full floorboards
  • Day lights
  • 0.7 US gal. (2.7 l) storage compartment
Engine
  • Type: 89.5cc, single, air-cooled, SOHC, 2-valve
  • Bore & Stroke: 49.5 x 48 mm
  • EFI System / Carburetor: Carburetion, Keihin
  • Starting System: Electric & kick start
  • Transmission: Automatic CVT, Forward, Neutral & Reverse
  • Drive Train: Chain driven / solid axle
Chassis
  • Frame: DS 90
  • Front Suspension Type: Independent A-arm
  • Travel: 3.4 in (86 mm)
  • Rear Suspension Type: Swingarm
  • Travel: 6.3 in (160 mm)
  • Front Brake: Double drum
  • Rear Brake: Drum
  • Tires/Front: 19 x 7 x 8 in. (483 x 178 x 203 mm)
  • Tires/Rear: 18 x 9,5 x 8 in. (457 x 241 x 203 mm)
  • Wheels: Steel
Dimensions
  • L x W x H (in): 59.8 x 35.5 x 36.8 in
  • L x W x H (mm): 1.525 x 0.89 x 0.939 mm
  • Wheelbase: 39 in (1 mm)
  • Seat Height: 27 in (685 mm)
  • Ground Clearance: 8.3 in (211 mm)
  • Dry Weight: 245 lbs (111 kg)
  • Storage: Front storage 0.7 US gal. (2.7L)
  • Fuel Capacity: 1.6 US gal. (6 L)
Features
  • Instrumentation: Reverse, neutral
  • Lighting: Day lights
  • Color(s) available: Yellow
Warranty
  • Basic: 6 months limited factory warranty

Specifications

Engine
Engine Type Single, air-cooled, SOHC, 2-valve
Displacement 89.5 cc
Bore x Stroke 49.5 x 48 mm
Cylinders Single
Engine Cooling Air
Fuel System Carburetion, Keihin
Starting System Electric & kick start
Chassis
Front Suspension Independent A-arm
Front Travel 3.4 in. (86 mm)
Front Brake Type Double drum
Front Tires 19 x 7 x 8 in. (483 x 178 x 203 mm)
Rear Travel 6.3 in. (160 mm)
Rear Suspension Swingarm
Rear Brake Type Drum
Rear Tires 18 x 9,5 x 8 in. (457 x 241 x 203 mm)
Frame DS 90
Dimensions/Capacities
Dry Weight 245 lbs (111 kg)
Fuel Capacity 1.6 gal. (6 l)
Ground Clearance 8.3 in. (211 mm)
Machine Dimensions (LxWxH) 59.8 x 35.5 x 36.8 in. (1.525 x 0.89 x 0.939 mm)
Wheelbase 39 in. (1 mm)
Drive Train
Drive Train Chain driven / solid axle
Transmission Automatic CVT, Forward, Neutral & Reverse
General
Lighting Day lights
Colors Yellow
Warranty Basic: 6 months limited factory warranty

Compare Models

 Print








Year 2009
Manufacturer Can-Am
Model Youth DS 90
Style Youth
MSRP* $2,499.00
Chassis
Front Suspension Independent A-arm
Front Travel 3.4 in. (86 mm)
Front Brake Type Double drum
Front Tires 19 x 7 x 8 in. (483 x 178 x 203 mm)
Rear Suspension Swingarm
Rear Travel 6.3 in. (160 mm)
Rear Brake Type Drum
Rear Tires 18 x 9,5 x 8 in. (457 x 241 x 203 mm)
Frame DS 90
Dimensions/Capacities
Dry Weight 245 lbs (111 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 1.6 gal. (6 l)
Ground Clearance 8.3 in. (211 mm)
Machine Dimensions (LxWxH) 59.8 x 35.5 x 36.8 in. (1.525 x 0.89 x 0.939 mm)
Wheelbase 39 in. (1 mm)
Drive Train
Drive Train Chain driven / solid axle
Final Drive
Transmission Automatic CVT, Forward, Neutral & Reverse
Engine
Engine Type Single, air-cooled, SOHC, 2-valve
Displacement 89.5 cc
Bore x Stroke 49.5 x 48 mm
Cylinders Single
Engine Cooling Air
Fuel System Carburetion, Keihin
Starting System Electric & kick start
Alternator
General
Speedometer
Tachometer
Odometer
Lighting Day lights
Colors Yellow
Warranty Basic: 6 months limited factory warranty

Current Promotions

There are currently no promotions available for this product.
