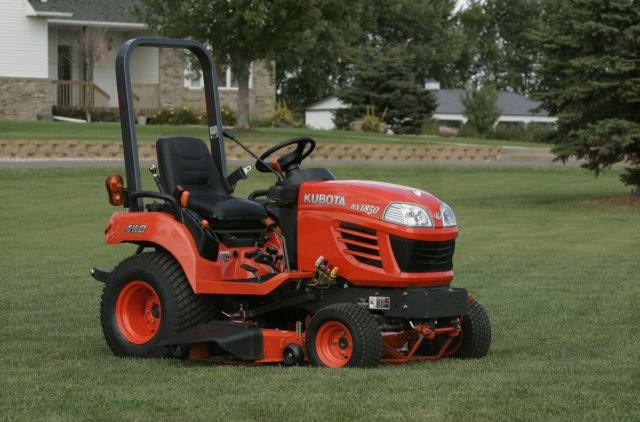

2009 Kubota BX1850 Sub Compact Tractor


Request a Quote Financing Calculator Request a Brochure Financing Form

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Start with the strength and versatility of a compact utility tractor. Blend them with the agile handling and feel of a garden tractor. Add new upgraded features, then reinforce the end product with incomparable reliability, and you've got the Kubota BX-Series.


Hydrostatic Power Steering:
A standard feature, power steering makes steering practically effortless, reducing stress and operator fatigue.


Halogen Lights:
The halogen headlights offer a clear bright light at dawn, dusk or dark of night. Furthermore, the casing and style has been newly redesigned, giving the tractor a sleeker look.


Slanted Hood Design:
The new slanted hood and rounded design offer improved visibility for the operator and a sleek upscale look you'll be proud to show off in your garden or yard.


Loader Joystick Lever:
The simple movement of the single-joystick easily controls all front loader operations, including simultaneous operation of the boom and bucket.


Rigid ROPS:
Rigid Roll-Over Protective Structure comes standard on the BX2350.

High Back Seat with Seat-Mounted Seatbelt:
The seatbelt of the new BX2350 has been attached to the seat so that it won't restrict or become too tight while the tractor is in motion. Combine this with the deluxe high back seat for an operating experience more comfortable than ever before.


Handrails:
The BX2350 comes with handrails for operating and maneuvering easily.


Rear Differential Lock:
This feature contributes to more stable mowing operations by working to prevent slippage and skidding when working on wet grass.


Versatile Category I 3-Point Hitch:
Put your BX2350 to work with its Category I 3-point hitch. This sturdy and technologically advanced hitch allows you to attach a wide array of full-fledged tractor implements.


Front Implement 4-Position Valve:
A new feature on the BX2350 tractor is our standard front implement 4-position valve (tractor can also be ordered without valve). Now part of the tractor; this valve provides you with the ability to quickly and easily attach the front loader and other front-mounted implements. Furthermore, the valve does not get in the way and gives the tractor a clean and sleek look.


Turf & Bar Tires:
The BX2350 comes with TURF or Bar tires


Easy To Read Instrument Panel with Digital Tachometer:
The new BX2350 features a digital tachometer that offers operators more precise monitoring on engine revolutions, especially when operating the PTO. When the engine is off, the digital tachometer displays the hour meter.


2-Pedal Inline HST:
When frequent changes in speed and direction are needed, the HST responds with its smooth operating forward and reverse pedals, leaving your hands free for steering and implement control. By splitting one pedal into two, operators are offered more foot room on the operator's platform.


12 Volt Dc Outlet:
Charge your cell phone while you work. The standard DC outlet provides power on the go.

Quarter-Inching Valve:
With 1/4 inch adjustment increments at the lower link end, our quarter inching valve provides easier implement control. The lever guide's regulator allows smaller adjustments, which are often required when attaching/detaching 3-point mounted implements or when performing sensitive jobs.


Cup Holder:
A convenient cup holder provides refreshment while you work.


Deluxe Lever Guides:
Stylish deluxe lever guides provide comfortable, easy operation.


Larger Operator's Platform: Larger Operator's Platform:
We've changed the pedal layout to increase operator comfort. We've split the forward and reverse HST pedals and moved the differential lock to the side of the seat. These changes give operators a larger deck area. Widened by four inches and lengthened by a full two inches, this wider step offers more foot room than prior BX models, eliminating the cramped feel of most garden tractors.

    Engine
    • Engine Type: E-TVCS liquid cooled, 3-cylinder diesel
    • Engine Make, Model: Kubota D722
    • Engine gross horsepower: 18.0 HP (13.4 kW)
    • PTO Horsepower: 13.7 HP (10.2 kW)
    • Rated RPM: 3200
    • Bore and stroke: 2.64x2.68 in. (78x78.4 mm)
    • Total displacement: 43.9 cu. in. (719 cc)
    • Air Cleaner: Dry paper dual element
    • Lubrication: Forced lubrication
    • Cooling System: Pressurized radiator
    • Radiator fan: Radial air flow
    Capacities
    • Fuel tank capacity: 6.6 gal. (25 l)
    • Cooling system capacity: 3.06 qts. (2.9 l)
    • Engine oil capacity: 3.06 qts. (2.9 l)
    • Transmission case capacity: 3.1 gal. (11.6 l)
    Drive Train
    • Transmission: HST (2 range)
    • Differential lock: Standard
    • Final drive: Spur gear
    • Brake: Multi wet disc
    • PTO Rear: 540 rpm at 3068 engine rpm
    • PTO Rear: 540 rpm at 3068 engine rpm
    • PTO Mid: 2500 rpm at 3125 engine rpm
    Hydraulics
    • Hydraulics Type: Open center
    • Hydraulics Pump: Gear Type
    • Hydraulics Total pump output: 6.3 gpm (24.0 l/min)
    • Hydraulic outlet: Block (Mid & Rear)
    • 3-point hitch: Category I
    • Hydraulic control system: Quarter Inching Valve
    • Lift capacity at lift point: 992 lbs. (450 kg)
    • Lift capacity 24 in. behind lift point: 661 lbs. (300 kg)
    • Steering: Hydrostatic power steering
    Standard Tire Size
    • Standard Tire Size; Front: 16 x 7.50; Turf
    • Standard Tire Size; Rear: 24 x 12.00 - 12; Turf
    Traveling Speeds
    • Traveling Speeds (at rated engine rpm); Forward: 0-7.8 mph
    • Traveling Speeds (at rated engine rpm); Reverse: 0-5.7 mph
    Dimensions
    • Overall length (with 3P): 92.1 in. (2340 mm)
    • Overall width (min. tread): 32.2 in. (820 mm)
    • Wheelbase: 52.8 in. (1340 mm)
    • Ground clearance: 9.0 in. (230 mm)
    • Turning radius w/o brake: 7.2 ft. (2.2 m)
    • Weight with ROPS: 1255 lbs. (570 kg)
    Other Optional Implements
    • Loader Attachment
    • Fine Cut Mid-Mount Mower Attachment
    • Standard Mid-Mount Mower Attachment
    • Front Blade Attachment
    • Front Mount Snow Blower Attachment
    • 3-pt Mounted Snow Blower Attachment
    • Grass Catcher Attachment
    • Rotary Sweeper Attachment

    Specifications

    Engine
    Engine Manufacturer Kubota D722
    Engine Type Engine Type: E-TVCS liquid cooled, 3-cylinder diesel; Total displacement: 43.9 cu. in.; (719 cc); Cooling System: Pressurized radiator
    Horsepower 18.0 HP; (13.4 kW)
    PTO HP 13.7 HP; (10.2 kW)
    Rated RPM 3200 RPM
    Bore and Stroke 2.64x2.68 in.; (78x78.4 mm)
    Specifications
    Wheelbase 52.8 in. (1340 mm)
    Width 32.2 in. (820 mm)
    Weight 1255 lbs. (570 kg) with ROPS
    Ground Clearance 9.0 in. (230 mm)
    Tire Size Front: 16 x 7.50; Turf; Rear: 24 x 12.00 – 12; Turf
    General
    Fuel Capacity 6.6 gal. (25 l)
    Transmission HST (2 range)
    Brakes Multi wet disc
    Hydraulics Hydraulics Type: Open center; Hydraulics Pump: Gear Type
    Drive Type Spur gear

    Compare Models

    Print








    Year 2009
    Manufacturer Kubota
    Model BX1850 Sub Compact Tractor
    Style Compact
    Engine
    Engine Manufacturer Kubota D722
    Engine Type Engine Type: E-TVCS liquid cooled, 3-cylinder diesel; Total displacement: 43.9 cu. in.; (719 cc); Cooling System: Pressurized radiator
    Horsepower 18.0 HP; (13.4 kW)
    PTO HP 13.7 HP; (10.2 kW)
    Rated RPM 3200 RPM
    Bore and Stroke 2.64x2.68 in.; (78x78.4 mm)
    General
    Fuel System
    Fuel Capacity 6.6 gal. (25 l)
    Transmission HST (2 range)
    Brakes Multi wet disc
    Hydraulics Hydraulics Type: Open center; Hydraulics Pump: Gear Type
    Drive Type Spur gear
    Specifications
    Wheelbase 52.8 in. (1340 mm)
    Height
    Width 32.2 in. (820 mm)
    Weight 1255 lbs. (570 kg) with ROPS
    Ground Clearance 9.0 in. (230 mm)
    Tire Size Front: 16 x 7.50; Turf; Rear: 24 x 12.00 – 12; Turf
